Upgrading from 1.1 to 1.3 in Blackbaud

In this guide:

• Step 1: Update the existing LTI 1.1 integration to LTI 1.3
• Step 2: Deploy LTI 1.3 Integration

Step 1: Update the existing LTI 1.1 integration to LTI 1.3

1. As an Admin, log into Blackbaud, navigate to Integration Settings, locate the Turnitin LTI 1.1 integration, then click Edit.
2. Change the tool to LTI 1.3
3. Make the Default Assignment type Classwork.
4. While keeping that Blackbaud tab open, in a new tab, log in to turnitin.com and find the account ID that was linked to your LTI 1.1 integration and click configured.
5. Select LTI 1.3.
6. Select Create new Registration.

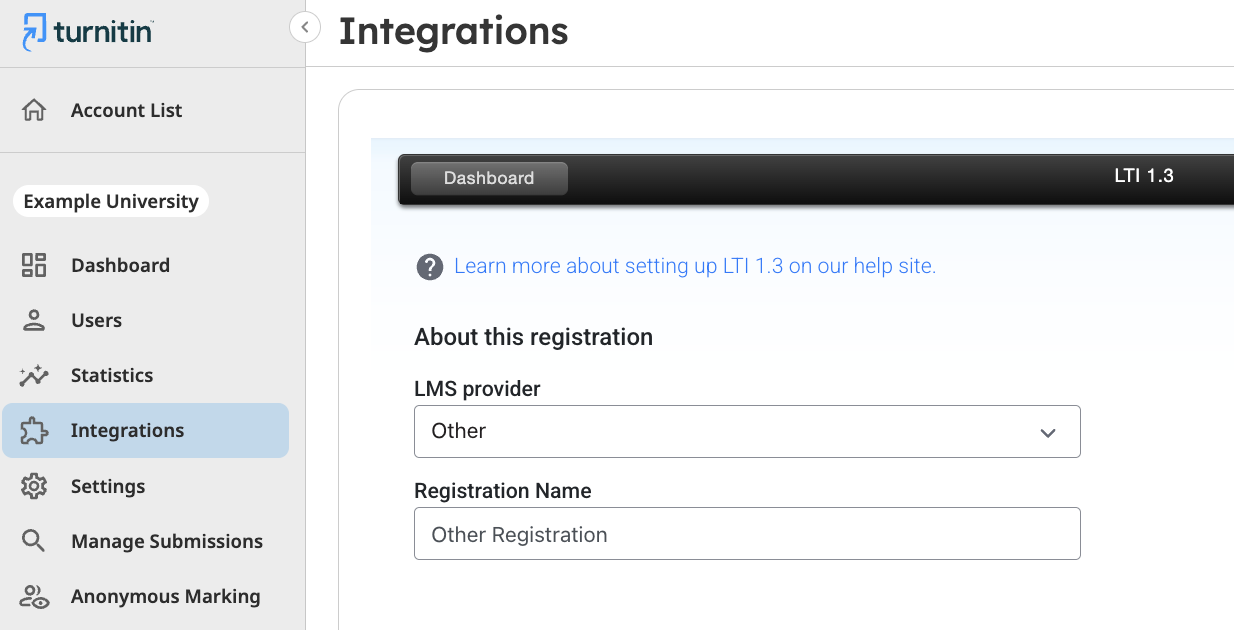

7. Select Other from the LMS provider dropdown menu.
8. Name your registration.

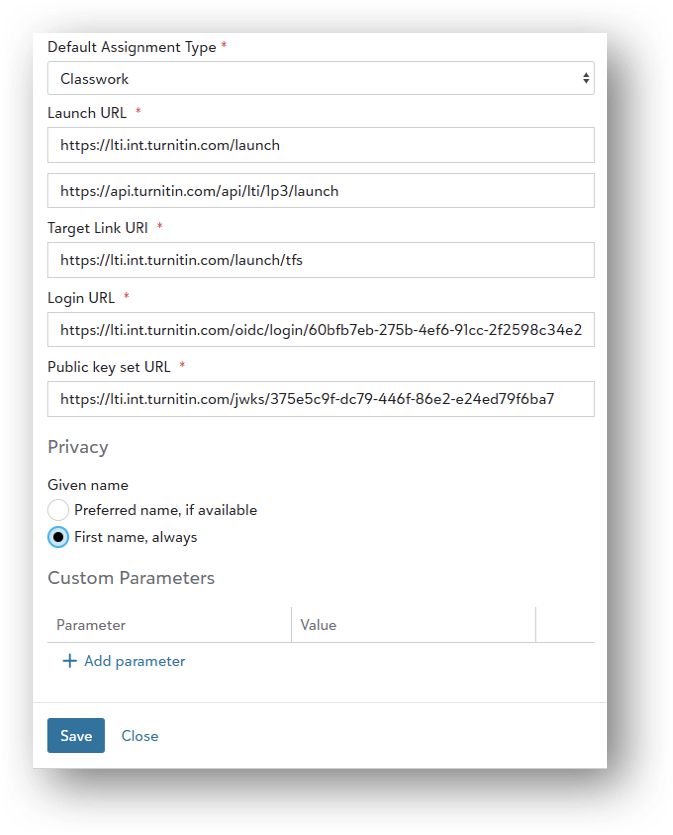

9. Copy the Target Link URI and paste it into the Target Link URI field in Blackbaud (overriding what is there).
10. Copy the two Launch URLs and paste them into the Launch URL fields in Blackbaud.
11. Copy the Login Initiation URL and paste it into the Login URL field in Blackbaud.
12. Copy the Tool Public Key set URL and paste it into the Public key set URL field in Blackbaud.
13. Under Privacy, choose First name, always. Then select Save.

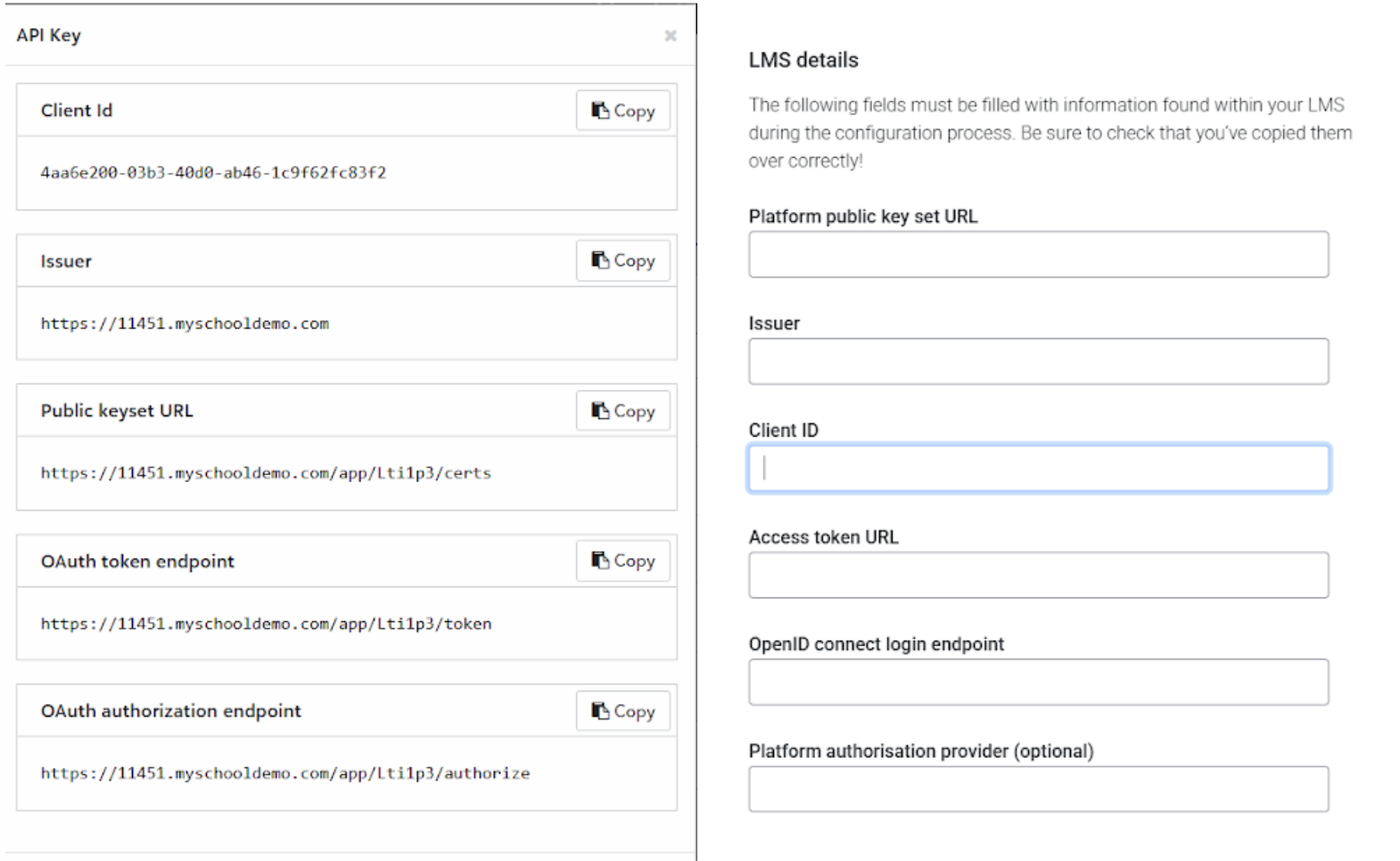

14. Once the LTI 1.1 integration is updated, select View API key.
15. Copy the Client ID from Blackbaud and paste it into the Client ID field in turnitin.com.
16. Copy the Issuer from Blackbaud and paste it into the Issuer field in turnitin.com.
17. Copy the Public keyset URL from Blackbaud and paste it into the Platform public key set URL field in turnitin.com. /li
18. Copy the OAuth token endpoint from Blackbaud and paste it into the Access token URL field in turnitin.com.
19. Copy the OAuth authorization endpoint from Blackbaud and paste it into the OpenID connect login endpoint field in turnitin.com.
20. Click Save to save the information in turnitin.com. You can close this tab now.
21. Click close in Backbaud.

Step 2: Deploy LTI 1.3 Integration

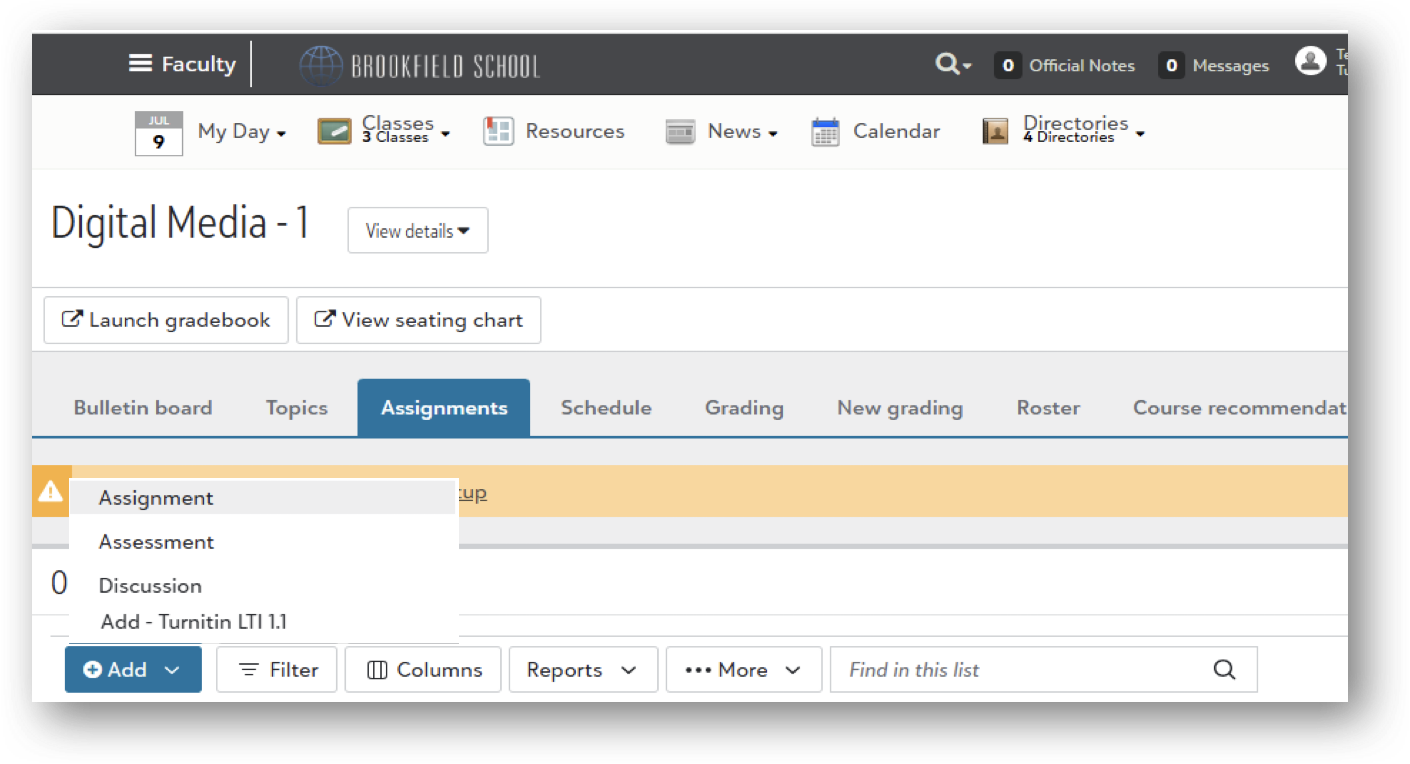

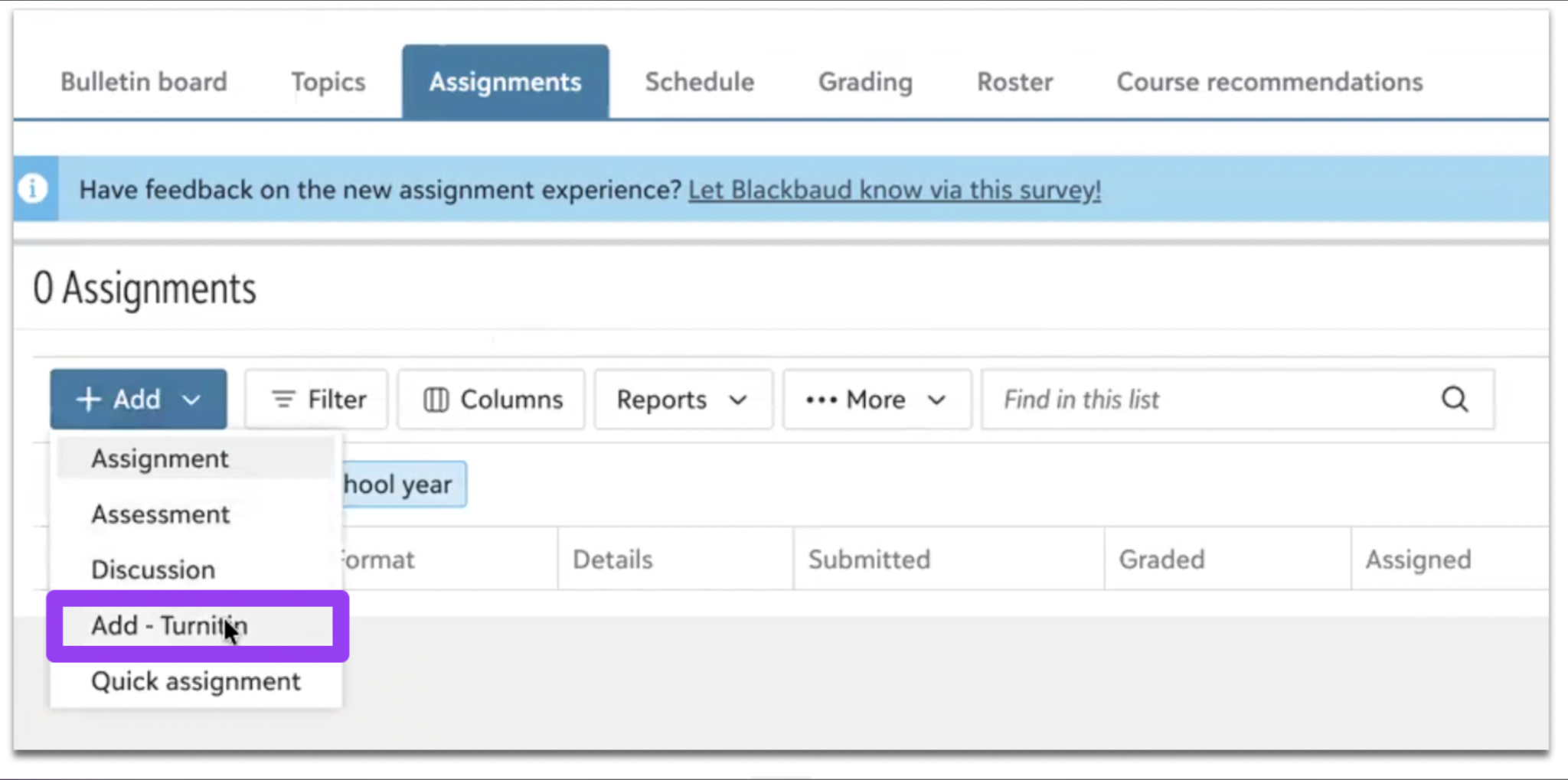

1. Navigate to a course and click Add. Choose the Turnitin LTI 1.3 tool from the options in the dropdown.
2. In the new window, there will be an option to connect your account to Turnitin. Choose Global.
3. Have the Turnitin Administrator enter the email address and password they use to access turnitin.com. We need this to initially authenticate the registration as genuine. Both the Email and Password fields are case-sensitive.
4. Using the radio buttons, select the same account that was linked to the LTI 1.1 integration. Use the Next button to continue.

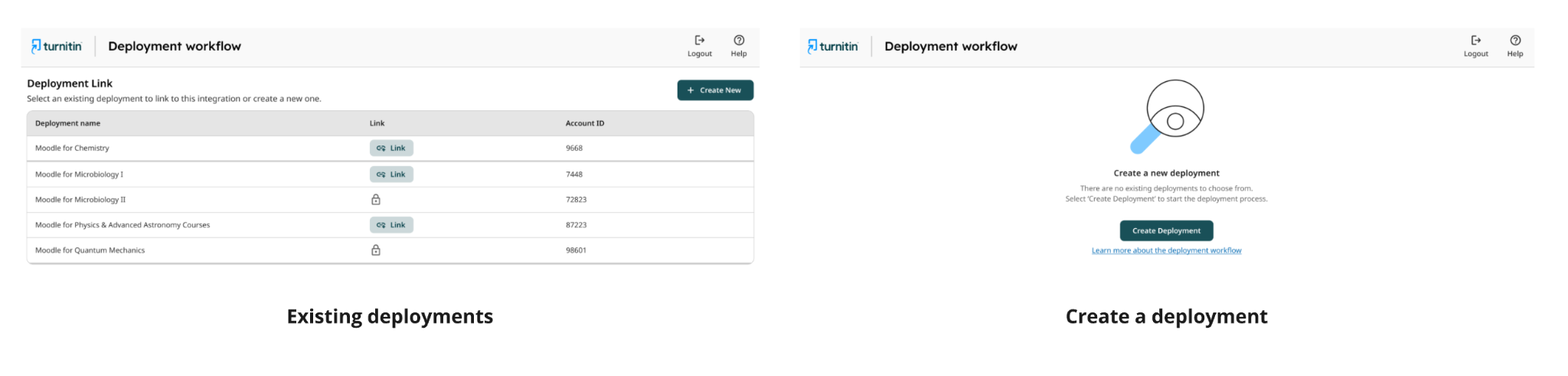

5. Review the content on the confirmation screen. If everything looks correct, select the Confirm and Complete button to finish your setup.

6. Once you've linked your account and finished creating your assignment, the dummy assignment can be deleted. Your registration has been initialized.
